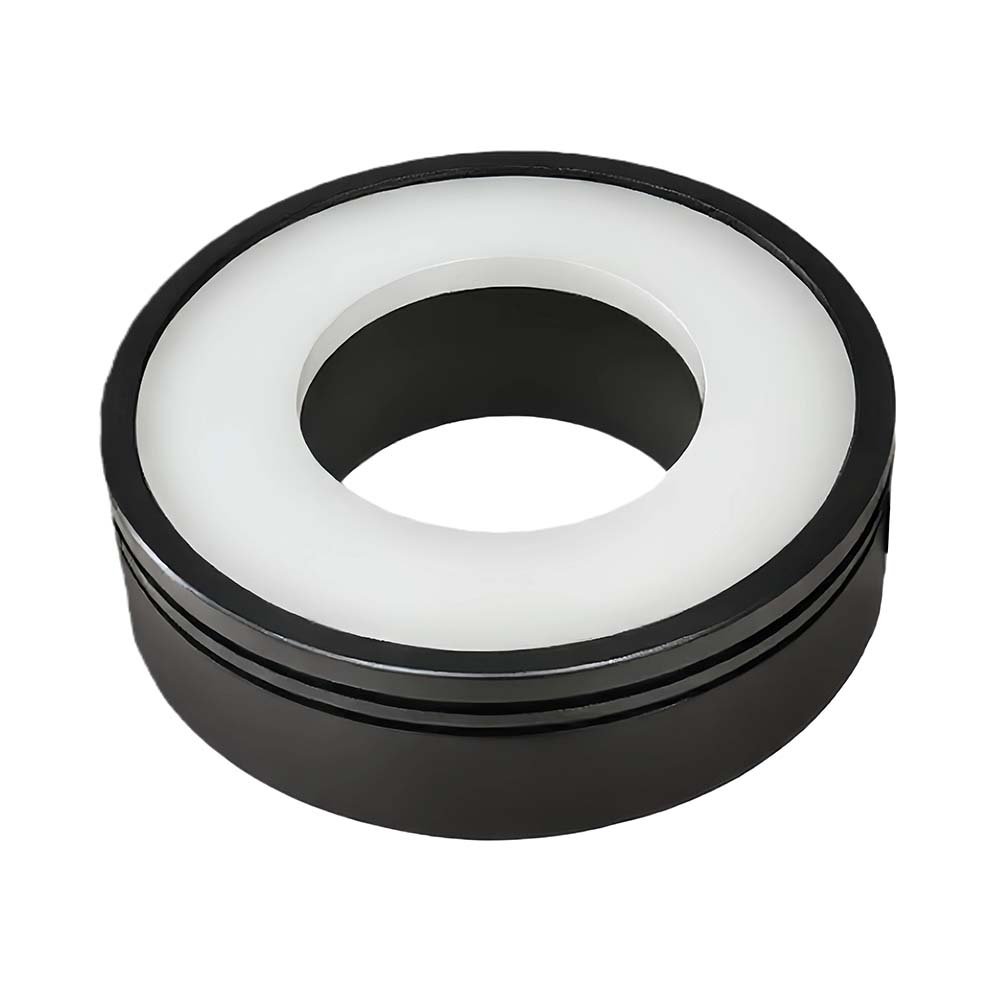

SWIR Ring Light

Product Description

We are a professional manufacturer of infrared ring vision light sources. The wavelength can be customized within the range of 800–1700 nm, and dimensions, optical power and other specifications can be customized to meet your demands.

Product Features

◆ Standard wavelengths: 808 nm, 830 nm, 850 nm, 905 nm, 940 nm, 1050 nm, 1150 nm, 1200 nm, 1300 nm, 1350 nm, 1450 nm, 1550 nm, 1650 nm, 1720 nm.

◆ Other wavelengths available for customization; customizable range: 800–1700 nm.

◆ Optical power can be customized according to requirements.

◆ Dimensions can be customized according to requirements.

◆ Angles are customizable.

Model	Wavelength	Inner Diameter	Outer Diameter	Angle	Power
HS-RI0-70-36-IR850	850nm	36mm	76mm	0°	24V 2.4W
HS-RI0-70-36-IR940	940nm	36mm	76mm	0°	24V 2.4W
HS-RI0-70-36-IR1050	1050nm	36mm	76mm	0°	24V 2.4W
HS-RI0-70-36-IR1150	1150nm	36mm	76mm	0°	24V 2.4W
HS-RI0-70-36-IR1300	1300nm	36mm	76mm	0°	24V 2.4W
HS-RI0-70-36-IR1450	1450nm	36mm	76mm	0°	24V 2.4W
HS-RI0-70-36-IR1550	1550nm	36mm	76mm	0°	24V 2.4W
HS-RI0-90-36-IR850	850nm	36mm	90mm	0°	24V 3.6W
HS-RI0-90-36-IR940	940nm	36mm	90mm	0°	24V 3.6W
HS-RI0-90-36-IR1050	1050nm	36mm	90mm	0°	24V 3.6W
HS-RI0-90-36-IR1150	1150nm	36mm	90mm	0°	24V 3.6W
HS-RI0-90-36-IR1300	1300nm	36mm	90mm	0°	24V 3.6W
HS-RI0-90-36-IR1450	1450nm	36mm	90mm	0°	24V 3.6W
HS-RI0-90-36-IR1550	1550nm	36mm	90mm	0°	24V 3.6W
HS-RI0-100-40-IR850	850nm	40mm	100mm	0°	24V 5W
HS-RI0-100-40-IR940	940nm	40mm	100mm	0°	24V 5W
HS-RI0-100-40-IR1050	1050mm	40mm	100mm	0°	24V 5W
HS-RI0-100-40-IR1150	1150nm	40mm	100mm	0°	24V 5W
HS-RI0-100-40-IR1300	1300nm	40mm	100mm	0°	24V 5W
HS-RI0-100-40-IR1450	1450nm	40mm	100mm	0°	24V 5W
HS-RI0-100-40-IR1550	1550nm	40mm	100mm	0°	24V 5W
HS-RI45-70-34-IR850	850nm	34mm	70mm	45°	24V 2.4W
HS-RI45-70-34-IR940	940nm	34mm	70mm	45°	24V 2.4W
HS-RI45-70-34-IR1050	1050nm	34mm	70mm	45°	24V 2.4W
HS-RI45-70-34-IR1150	1150nm	34mm	70mm	45°	24V 2.4W
HS-RI45-70-34-IR1300	1300nm	34mm	70mm	45°	24V 2.4W
HS-RI45-70-34-IR1450	1450nm	34mm	70mm	45°	24V 2.4W
HS-RI45-70-34-IR1550	1550nm	34mm	70mm	45°	24V 2.4W
HS-RI45-90-36-IR850	850nm	36mm	90mm	45°	24V 3.6W
HS-RI45-90-36-IR940	940nm	36mm	90mm	45°	24V 3.6W
HS-RI45-90-36-IR1050	1050nm	36mm	90mm	45°	24V 3.6W
HS-RI45-90-36-IR1150	1150nm	36mm	90mm	45°	24V 3.6W
HS-RI45-90-36-IR1300	1300nm	36mm	90mm	45°	24V 3.6W
HS-RI45-90-36-IR1450	1450nm	36mm	90mm	45°	24V 3.6W
HS-RI45-90-36-IR1550	1550nm	36mm	90mm	45°	24V 3.6W
HS-RI45-105-65-IR850	850nm	65mm	105mm	45°	24V 5W
HS-RI45-105-65-IR940	940nm	65mm	105mm	45°	24V 5W
HS-RI45-105-65-IR1050	1050nm	65mm	105mm	45°	24V 5W
HS-RI45-105-65-IR1150	1150nm	65mm	105mm	45°	24V 5W
HS-RI45-105-65-IR1300	1300nm	65mm	105mm	45°	24V 5W
HS-RI45-105-65-IR1450	1450nm	65mm	105mm	45°	24V 5W
HS-RI45-105-65-IR1550	1550nm	65mm	105mm	45°	24V 5W
HS-RI45-120-50-IR850	850nm	50mm	120mm	45°	24V 8W
HS-RI45-120-50-IR940	940nm	50mm	120mm	45°	24V 8W
HS-RI45-120-50-IR1050	1050nm	50mm	120mm	45°	24V 8W
HS-RI45-120-50-IR1150	1150nm	50mm	120mm	45°	24V 8W
HS-RI45-120-50-IR1300	1300nm	50mm	120mm	45°	24V 8W
HS-RI45-120-50-IR1450	1450nm	50mm	120mm	45°	24V 8W
HS-RI45-120-50-IR1550	1550nm	50mm	120mm	45°	24V 8W
