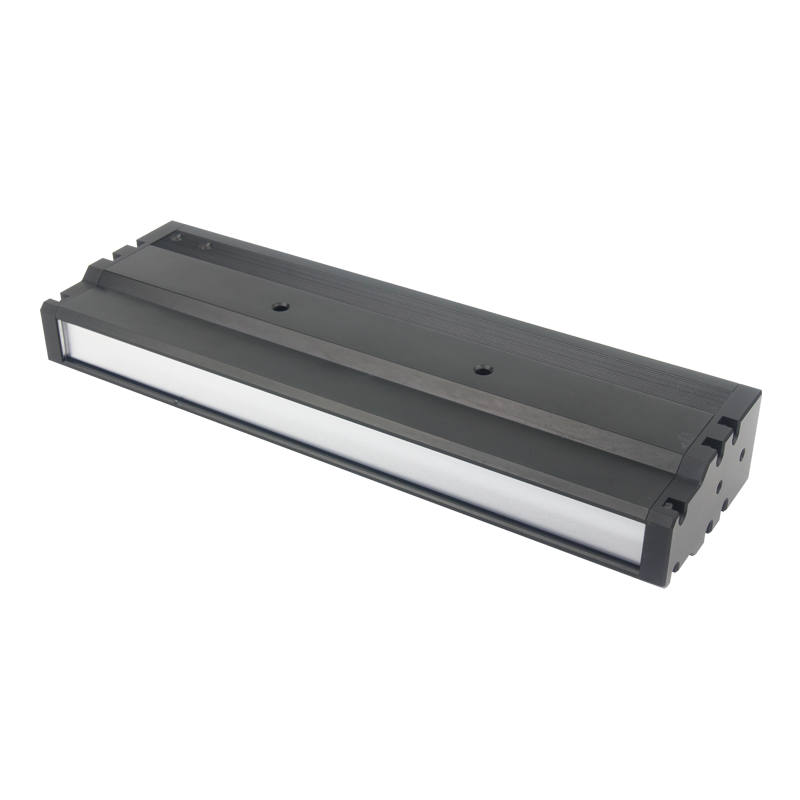

SWIR Line Scan Light

Product Features

◆Standard Wavelengths: 808 nm, 830 nm, 850 nm, 905 nm, 940 nm, 1050 nm, 1064 nm, 1150 nm, 1200 nm, 1300 nm, 1350 nm, 1450 nm, 1550 nm, 1650 nm, 1720 nm, etc.

◆Other wavelengths customizable. Custom wavelength range for IR line scan light sources: 800–1750 nm

◆Length can be customized, with a maximum length of 5000 mm.

◆Customizable: radiant intensity, power, etc.

◆Front lighting / backlighting optional.

◆Customizable IP67 waterproof rating.

◆Customizable cooling options: air cooling, forced air cooling, water cooling.

Application scope

◆ Semiconductor wafer inspection

◆ Photovoltaic silicon wafer inspection

◆ Detect foreign objects inside liquids

◆ Object detection in food packaging

◆ LCD, OLED screen detection

◆ Packaging (see-through plastic packaging inspection)

Model	Color	Wavelength	Emitting Size(Length)	Voltage	Power
HS-LI-100-IR850	IR	850nm	100mm	24V	50W
HS-LI-100-IR940	IR	940nm	100mm	24V	50W
HS-LI-100-IR1050	SWIR	1050nm	100mm	24V	25W
HS-LI-100-IR1150	SWIR	1150nm	100mm	24V	20W
HS-LI-100-IR1300	SWIR	1300nm	100mm	24V	20W
HS-LI-100-IR1450	SWIR	1450nm	100mm	24V	20W
HS-LI-100-IR1550	SWIR	1550nm	100mm	24V	20W
HS-LI-150-IR850	IR	850nm	150mm	24V	75W
HS-LI-150-IR940	IR	940nm	150mm	24V	75W
HS-LI-150-IR1050	SWIR	1050nm	150mm	24V	50W
HS-LI-200-IR850	IR	850nm	200mm	24V	100W
HS-LI-200-IR940	IR	940nm	200mm	24V	100W
HS-LI-200-IR1050	SWIR	1050nm	200mm	24V	50W
HS-LI-200-IR1150	SWIR	1150nm	200mm	24V	40W
HS-LI-200-IR1300	SWIR	1300nm	200mm	24V	40W
HS-LI-200-IR1450	SWIR	1450nm	200mm	24V	40W
HS-LI-200-IR1550	SWIR	1550nm	200mm	24V	40W
HS-LI-250-IR850	IR	850nm	250mm	24V	125W
HS-LI-250-IR940	IR	940nm	250mm	24V	125W
HS-LI-250-IR1050	SWIR	1050nm	250mm	24V	75W
HS-LI-250-IR1150	SWIR	1150nm	250mm	24V	60W
HS-LI-250-IR1300	SWIR	1300nm	250mm	24V	60W
HS-LI-250-IR1450	SWIR	1450nm	250mm	24V	60W
HS-LI-250-IR1550	SWIR	1550nm	250mm	24V	60W
HS-LI-300-IR850	IR	850nm	300mm	24V	150W
HS-LI-300-IR940	IR	940nm	300mm	24V	150W
HS-LI-300-IR1050	SWIR	1050nm	300mm	24V	75W
HS-LI-300-IR1150	SWIR	1150nm	300mm	24V	60W
HS-LI-300-IR1300	SWIR	1300nm	300mm	24V	60W
HS-LI-300-IR1450	SWIR	1450nm	300mm	24V	60W
HS-LI-300-IR1550	SWIR	1550nm	300mm	24V	60W
HS-LI-350-IR850	IR	850nm	350mm	24V	175W
HS-LI-350-IR940	IR	940nm	350mm	24V	175W
HS-LI-350-IR1050	SWIR	1050nm	350mm	24V	100W
HS-LI-350-IR1150	SWIR	1150nm	350mm	24V	80W
HS-LI-350-IR1300	SWIR	1300nm	350mm	24V	80W
HS-LI-350-IR1450	SWIR	1450nm	350mm	24V	80W
HS-LI-350-IR1550	SWIR	1550nm	350mm	24V	80W
HS-LI-400-IR850	IR	850nm	400mm	24V	200W
HS-LI-400-IR940	IR	940nm	400mm	24V	200W
HS-LI-400-IR1050	SWIR	1050nm	400mm	24V	125W
HS-LI-400-IR1150	SWIR	1150nm	400mm	24V	80W
HS-LI-400-IR1300	SWIR	1300nm	400mm	24V	80W
HS-LI-400-IR1450	SWIR	1450nm	400mm	24V	80W
HS-LI-400-IR1550	SWIR	1550nm	400mm	24V	80W
HS-LI-450-IR850	IR	850nm	450mm	24V	225W
HS-LI-450-IR940	IR	940nm	450mm	24V	225W
HS-LI-450-IR1050	SWIR	1050nm	450mm	24V	150W
HS-LI-450-IR1150	SWIR	1150nm	450mm	24V	100W
HS-LI-450-IR1300	SWIR	1300nm	450mm	24V	100W
HS-LI-450-IR1450	SWIR	1450nm	450mm	24V	100W
HS-LI-450-IR1550	SWIR	1550nm	450mm	24V	100W
HS-LI-500-IR850	IR	850nm	500mm	24V	250W
HS-LI-500-IR940	IR	940nm	500mm	24V	250W
HS-LI-500-IR1050	SWIR	1050nm	500mm	24V	150W
HS-LI-500-IR1150	SWIR	1150nm	500mm	24V	100W
HS-LI-500-IR1300	SWIR	1300nm	500mm	24V	100W
HS-LI-500-IR1450	SWIR	1450nm	500mm	24V	100W
HS-LI-500-IR1550	SWIR	1550nm	500mm	24V	100W
