Home > Products > Machine Vision Light > SWIR Light > SWIR Backlights Light

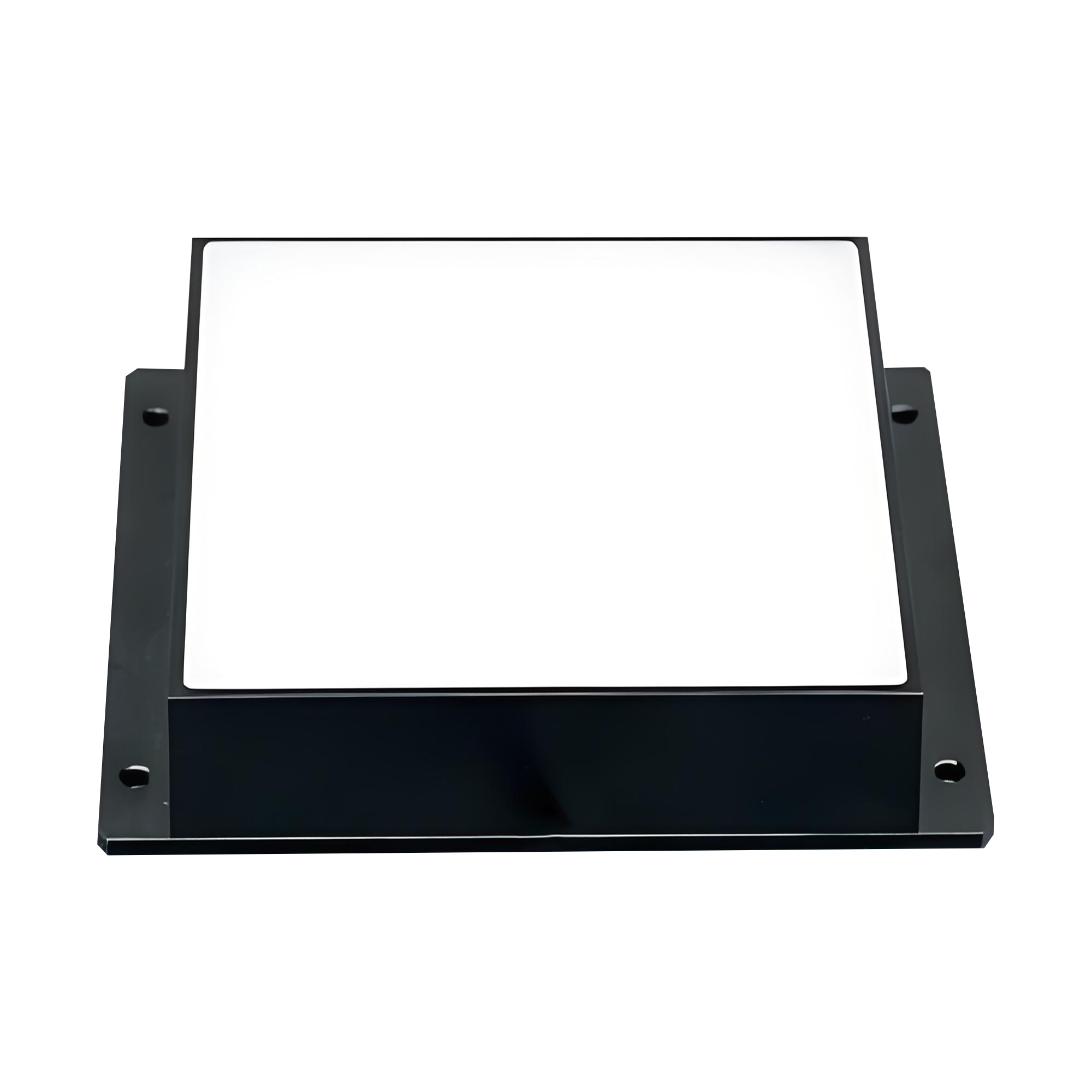

SWIR Backlights Light

SWIR Backlights Light

Product Description
Hongshuo Technology, a professional manufacturer of infrared vision light sources. Uniformity optional at 85% / 93%; Wavelength customizable from 800 to 1700 nm; Optical power available on custom request; Dimensions customizable.
Product Features

◆ Standard wavelengths: 808 nm, 830 nm, 850 nm, 905 nm, 940 nm, 1050 nm,1064 nm, 1150 nm, 1200 nm, 1300 nm, 1350 nm, 1450 nm, 1550 nm, 1650 nm, 1720 nm. Other wavelengths are customizable, with a customization range of 800–1700 nm.

◆ Standard optical power: 10 mW/cm². Other values are customizable, with a maximum of 300 mW/cm².

◆ Multiple cooling methods are available for customization, including passive cooling, air cooling, water cooling and gas cooling.

◆ Dimensions can be customized according to requirements.

◆ Uniformity options: 85% and 93%.

Model Wavelenght Emitting Area Dimension Power
HS-PB-50-50-IR850 850nm 50*50mm 24V 3W
HS-PB-50-50-IR940 940nm 50*50mm 24V 3W
HS-PB-50-50-IR1050 1050nm 50*50mm 24V 3W
HS-PB-50-50-IR1150 1150nm 50*50mm 24V 2W
HS-PB-50-50-IR1300 1300nm 50*50mm 24V 2W
HS-PB-50-50-IR1450 1450nm 50*50mm 24V 2W
HS-PB-50-50-IR1550 1550nm 50*50mm 24V 2W
HS-PB-100-50-IR850 850nm 100*50mm 24V 5W
HS-PB-100-50-IR940 940nm 100*50mm 24V 5W
HS-PB-100-50-IR1050 1050nn 100*50mm 24V 5W
HS-PB-100-50-IR1150 1150nm 100*50mm 24V 4W
HS-PB-100-50-IR1300 1300nm 100*50mm 24V 4W
HS-PB-100-50-IR1450 1450nm 100*50mm 24V 4W
HS-PB-100-50-IR1550 1550nm 100*50mm 24V 4W
HS-PB-100-100-IR850 850nm 100*100mm 24V 10W
HS-PB-100-100-IR940 940nm 100*100mm 24V 10W
HS-PB-100-100-IR1050 1050nm 100*100mm 24V 10W
HS-PB-100-100-IR1150 1150nm 100*100mm 24V 8W
HS-PB-100-100-IR1300 1300nm 100*100mm 24V 8W
HS-PB-100-100-IR1450 1450nm 100*100mm 24V 8W
HS-PB-100-100-IR1550 1550nm 100*100mm 24V 8W
HS-PB-150-100-IR850 850nm 150*100mm 24V 12W
HS-PB-150-100-IR940 940nm 150*100mm 24V 12W
HS-PB-150-100-IR1050 1050nm 150*100mm 24V 12W
HS-PB-150-100-IR1150 1150nm 150*100mm 24V 10W
HS-PB-150-100-IR1300 1300nm 150*100mm 24V 10W
HS-PB-150-100-IR1450 1450nm 150*100mm 24V 10W
HS-PB-150-100-IR1550 1550nm 150*100mm 24V 10W
HS-PB-150-150-IR850 850nm 150*150mm 24V 15W
HS-PB-150-150-IR940 940nm 150*150mm 24V 15W
HS-PB-150-150-IR1050 1050nm 150*150mm 24V 15W
HS-PB-150-150-IR1150 1150nm 150*150mm 24V 12W
HS-PB-150-150-IR1300 1300nm 150*150mm 24V 12W
HS-PB-150-150-IR1450 1450nm 150*150mm 24V 12W
HS-PB-150-150-IR1550 1550nm 150*150mm 24V 12W
HS-PB-200-150-IR850 850nm 200*150mm 24V 18W
HS-PB-200-150-IR940 940nm 200*150mm 24V 18W
HS-PB-200-150-IR1050 1050nm 200*150mm 24V 18W
HS-PB-200-150-IR1150 1150nm 200*150mm 24V 15W
HS-PB-200-150-IR1300 1300nm 200*150mm 24V 15W
HS-PB-200-150-IR1450 1450nm 200*150mm 24V 15W
HS-PB-200-150-IR1550 1550nm 200*150mm 24V 15W
HS-PB-200-200-IR850 850nm 200*200mm 24V 22W
HS-PB-200-200-IR940 940nm 200*200mm 24V 22W
HS-PB-200-200-IR1050 1050nm 200*200mm 24V 22W
HS-PB-200-200-IR1150 1150nm 200*200mm 24V 18W
HS-PB-200-200-IR1300 1300nm 200*200mm 24V 18W
HS-PB-200-200-IR1450 1450nm 200*200mm 24V 18W
HS-PB-200-200-IR1550 1550nm 200*200mm 24V 18W
HS-PB-250-200-IR850 850nm 250*200mm 24V 25W
HS-PB-250-200-IR940 940nm 250*200mm 24V 25W
HS-PB-250-200-IR1050 1050nm 250*200mm 24V 25W
HS-PB-250-200-IR1150 1150nm 250*200mm 24V 20W
HS-PB-250-200-IR1300 1300nm 250*200mm 24V 20W
HS-PB-250-200-IR1350 1350nm 250*200mm 24V 20W
HS-PB-250-200-IR1550 1550nm 250*200mm 24V 20W
HS-PB-250-250-IR850 850nm 250*250mm 24V 28W
HS-PB-250-250-IR940 940nm 250*250mm 24V 28W
HS-PB-250-250-IR1050 1050nm 250*250mm 24V 28W
HS-PB-250-250-IR1150 1150nm 250*250mm 24V 25W
HS-PB-250-250-IR1300 1300nm 250*250mm 24V 25W
HS-PB-250-250-IR1450 1450nm 250*250mm 24V 25W
HS-PB-250-250-IR1550 1550nm 250*250mm 24V 25W
HS-PB-300-250-IR850 850nm 300*250mm 24V 32W
HS-PB-300-250-IR940 940nm 300*250mm 24V 32W
HS-PB-300-250-IR1050 1050nm 300*250mm 24V 32W
HS-PB-300-250-IR1150 1150nm 300*250mm 24V 28W
HS-PB-300-250-IR1300 1300nm 300*250mm 24V 28W
HS-PB-300-250-IR1450 1450nm 300*250mm 24V 28W
HS-PB-300-250-IR1550 1550nm 300*250mm 24V 28W
HS-PB-300-300-IR850 850nm 300*300mm 24V 36W
HS-PB-300-300-IR940 940nm 300*300mm 24V 36W
HS-PB-300-300-IR1050 1050nm 300*300mm 24V 36W
HS-PB-300-300-IR1150 1150nm 300*300mm 24V 30W
HS-PB-300-300-IR1300 1300nm 300*300mm 24V 30W
HS-PB-300-300-IR1450 1450nm 300*300mm 24V 30W
HS-PB-300-300-IR1550 1550nm 300*300mm 24V 30W
HS-PB-350-300-IR850 850nm 350*300mm 24V 40W
HS-PB-350-300-IR940 940nm 350*300mm 24V 40W
HS-PB-350-300-IR1050 1050nm 350*300mm 24V 40W
HS-PB-350-300-IR1150 1150nm 350*300mm 24V 36W
HS-PB-350-300-IR1300 1300nm 350*300mm 24V 36W
HS-PB-350-300-IR1450 1450nm 350*300mm 24V 36W
HS-PB-350-300-IR1550 1550nm 350*300mm 24V 36W
HS-PB-350-350-IR1550 850nm 350*350mm 24V 50W
HS-PB-350-350-IR1550 940nm 350*350mm 24V 50W
HS-PB-350-350-IR1550 1050nm 350*350mm 24V 50W
HS-PB-350-350-IR1550 1150nm 350*350mm 24V 40W
HS-PB-350-350-IR1550 1300nm 350*350mm 24V 40W
HS-PB-350-350-IR1550 1450nm 350*350mm 24V 40W
HS-PB-350-350-IR1550 1550nm 350*350mm 24V 40W
