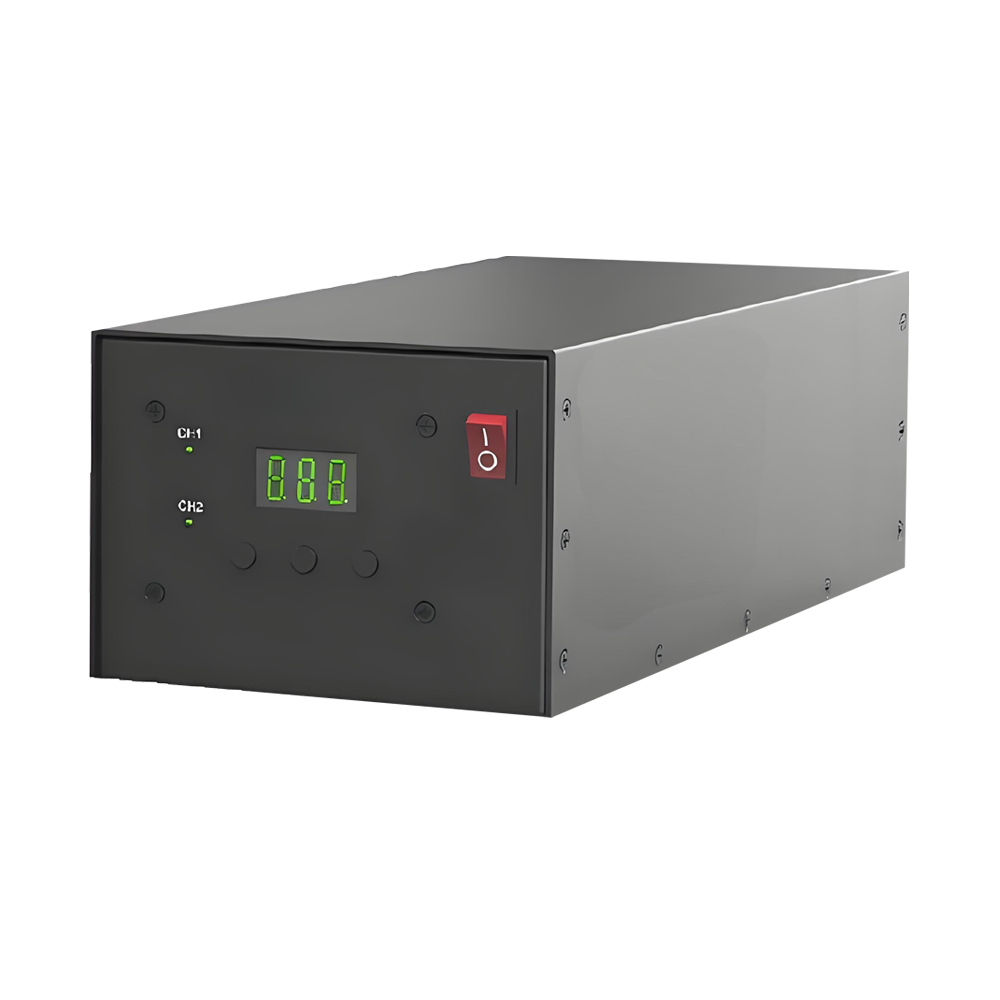

Constant current controller

Product Description

Digital constant current, 255 level brightness adjustment, network communication, digital display, manual setting, and upper computer adjustment are all available, with a minimum adjustment accuracy of 10us. Standard dual or four channels, up to 8 channels, and more channels can be customized

Product Features

◆ 255 levels of brightness adjustment

◆ Can be set manually, with digital display

◆ 4 outputs, more channels can be customized

◆ The external trigger input adopts high-speed optocoupler design,Stable and reliable

Item	Parameter
Input Voltage	AC110-240V 50-60Hz
Output	DC 48V/36V/24V/12V/3V or customized
Single channel maximum output current	20A
Control Accuracy	10us
response Delay	<0.3us
Channel	4
Maximum Frequency	30Khz
Voltage Input High(VIH)	Pulse width control luminous time
Configuration	100M Ethernet, using TCP/IP
Trigger Mode	Rising Edge
Trigger Input Voltage	5V differential or 5V TTL
